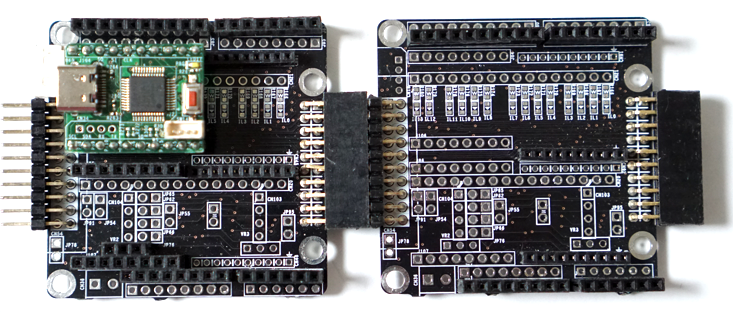

[GD32F-48 SSM EVM] GD32F303 Arduino 만들기



GD32F303을 Arduino로 사용하기위해  보드파일을 하기 링크를 이용하였다.

https://github.com/keyboardio/ArduinoCore-GD32-Keyboardio

GitHub - keyboardio/ArduinoCore-GD32-Keyboardio: Arduino core for GD32 devices, community developed, based on original GigaDevic

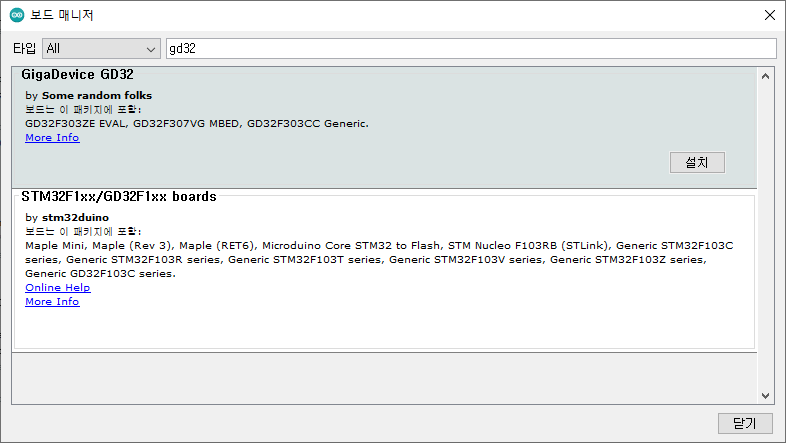

Arduino IDE 에서 Board 파일을 등록 해 주고 GD32로 검색해서 설치 할 수 있다.

https://raw.githubusercontent.com/CommunityGD32Cores/GD32Core-New/main/package_gd32_index.json







보드를 GD32F30x Generic series 로선택하고 Board part number를 GD32F303를 선택 해 주면 된다.

---





---

GD32 GPIO 레지스터 제어 함수

#define GPIO_BOP(gpiox)            REG32((gpiox) + 0x00000018U)    /*!< GPIO port bit operation register */

void gpio_bit_set(uint32_t gpio_periph, uint32_t pin)
{
    GPIO_BOP(gpio_periph) = (uint32_t)pin;
}

/*!
    \brief      reset GPIO pin bit
    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,F)
                only one parameter can be selected which is shown as below:
      \arg        GPIOx(x = A,B,C,D,F)
    \param[in]  pin: GPIO pin
                one or more parameters can be selected which are shown as below:
      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
    \param[out] none
    \retval     none
*/
void gpio_bit_reset(uint32_t gpio_periph, uint32_t pin)
{
    GPIO_BC(gpio_periph) = (uint32_t)pin;
}





GD32 Arduino variants 파일

/* SPI definitions */
#define PIN_SPI_SS              PA8
#define PIN_SPI_MOSI            PB15
#define PIN_SPI_MISO            PB14
#define PIN_SPI_SCK             PB13

/* I2C definitions */
#define PIN_WIRE_SDA            PB9
#define PIN_WIRE_SCL            PB8

/* TIMER or PWM definitions */
#define TIMER_TONE              TIMER5
#define TIMER_SERVO             TIMER6

#define PWM0                    PA8
#define PWM1                    PA0
#define PWM2                    PA1
#define PWM3                    PA2
#define PWM4                    PB6
#define PWM5                    PB7

/* USART definitions */

#define SERIAL_HOWMANY          1
/* by default now, use PA9 for TX. To get the old behavior for PA3, define the USE_USART1_SERIAL macro. */
#if !defined(USE_USART0_SERIAL) && !defined(USE_USART1_SERIAL)
#define USE_USART0_SERIAL
#endif

#ifdef USE_USART0_SERIAL
#define PIN_SERIAL_RX           PA10
#define PIN_SERIAL_TX           PA9
#define SERIAL0_RX          PIN_SERIAL_RX
#define SERIAL0_TX          PIN_SERIAL_TX
#elif defined(USE_USART1_SERIAL)
#define PIN_SERIAL_RX           PA3
#define PIN_SERIAL_TX           PA2
#define SERIAL1_RX          PIN_SERIAL_RX
#define SERIAL1_TX          PIN_SERIAL_TX
#endif
